PantoCheck, Pantograph measuring system : OVERVIEW

Automatic video and laser inspection system for monitoring Pantographs

The pantographs diagnostics system , PantoCheck, automatically detects all pantographs passing through the detection site, prevents pantograph faults and consequent damages on the overhead line.

The pantograph measuring system is composed by high speed cameras / lasers and it is installed on trackside.

PantoCheck, Pantograph measuring system : 3D reconstruction

Pantograph measuring system : 3D RECONSTRUCTION

High resolution 3D Laser scan system

INTERACTIVE 3D VIEW!!! Play with your mouse

The pantograph measuring system permits the user to have a complete 3D reconstruction of the detected pantograph as you can see in the figures below.

PantoCheck, Pantograph measuring system : COMPOSITION

The pantograph measuring system is the fusion of:

• Multiple Cameras
• Lighning
• Laser Scanners
• Software

Pantograph measuring system: MEASURED PARAMETERS

The pantograph measuring system PantoCheck is able to measure and check:

• Pantograph shape
• Pantograph integrity
• Pantograph geometry
• Pantograph horns
• Missing parts of carbon

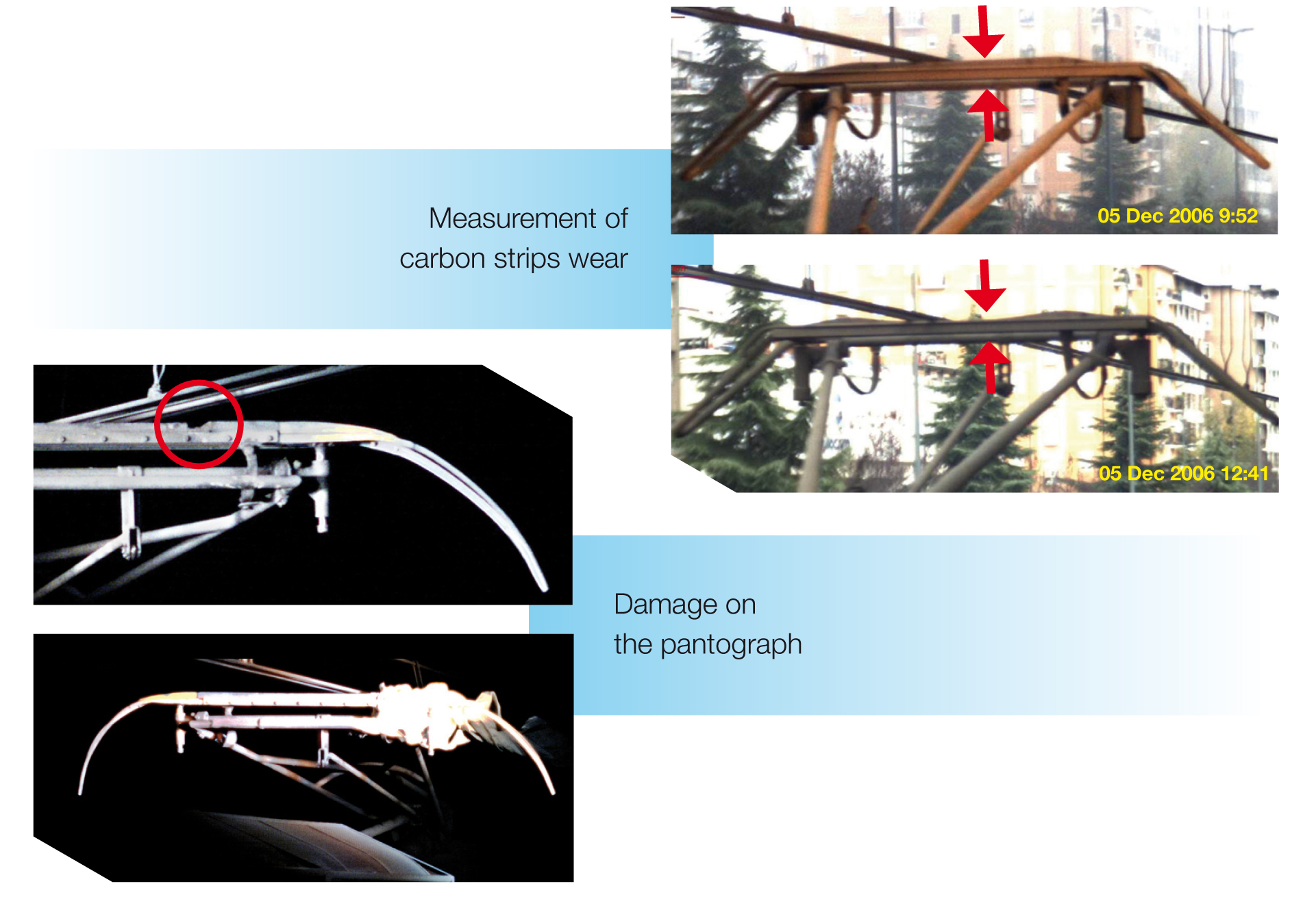

• Carbon strips wear
• Pantograph thrust
• Wire uplift
• Wire voltage
• Pantograph temperature

Real example of train with 6 pantos. The computer shows in real time the 3 different views of each pantograph: Frontal, rear, lateral view.
